Self-Built Application Configuration

Customers can seamlessly showcase ChatBI's capabilities to users through the bot in Feishu's Enterprise Self-Built Applications, enabling real-time data analysis in conversational BI. Within the Feishu client, users can directly interact with ChatBI using natural language to query and analyze data from SAP systems or data warehouses. Users can easily perform collaborative data queries and business analysis within the familiar Feishu environment without switching applications, significantly improving work efficiency and decision-making speed.

Enterprise Self-Built Applications​

Feishu Enterprise Self-Built Applications refer to applications developed and deployed by enterprises using the open interfaces and development tools provided by the Feishu platform. These applications can be customized to meet specific business processes, team collaboration, information management, and other internal needs of the enterprise.

To access the developer backend of the Feishu Open Platform: https://open.feishu.cn/app

Click on Create Enterprise Self-Built Application, enter the application name and information to create it successfully, then add the bot capability in Add Application Capability, and navigate to the bot configuration page:

Bot Settings​

Input basic information such as “How to get started.” Click to go to Events and Callbacks to add the “Card Callback Interaction” callback for the card.

Event Configuration​

To receive message events sent by Feishu, you first need to configure the event request address:

<Your server>/api/lark/webhook/<id>

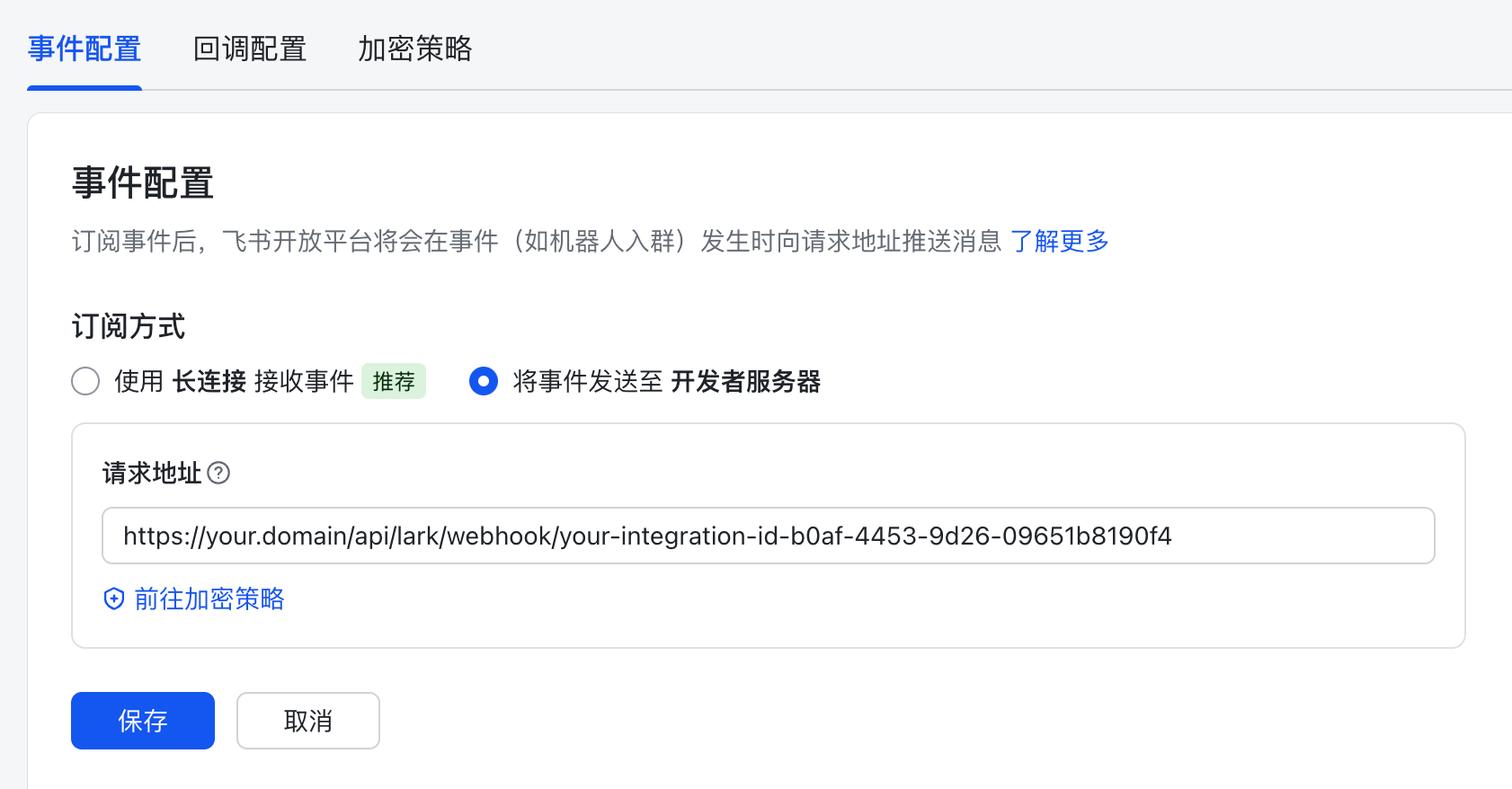

Webhook
Event Configuration, Request Address

Add events and enable the corresponding permissions:

  • im.message.receive_v1 Receive messages v2.0
  • application.bot.menu_v6 Custom bot menu events v2.0

Callback Configuration​

Request address (same as the event configuration request address): <Your server>/api/lark/webhook/<id>

Subscribed callbacks:

  • card.action.trigger Card Callback Interaction

Permission Management​

The following permissions need to be enabled for this self-built application:

  • im:message:send_as_bot
  • contact:contact.base:readonly
  • contact:user.email:readonly
  • contact:user.phone:readonly
  • contact:user.employee_id:readonly

Custom Bot Menu​

If you want to configure a model switching function in the custom bot menu, add the menu according to the following rule:

select_model:e7dc6846-c893-411a-90a2-0885a45fd5f1

Replace the uuid with the corresponding dialog model's id.

System Settings​

Environment Configuration​

When installing and deploying the system, configure the role name, which is the role initially assigned to the user created automatically by Feishu.

File .env
LARK_ROLE_NAME=VIEWER

Data Source​

Taking the SAP system as an example, create a data source that connects to the S/4HANA system.

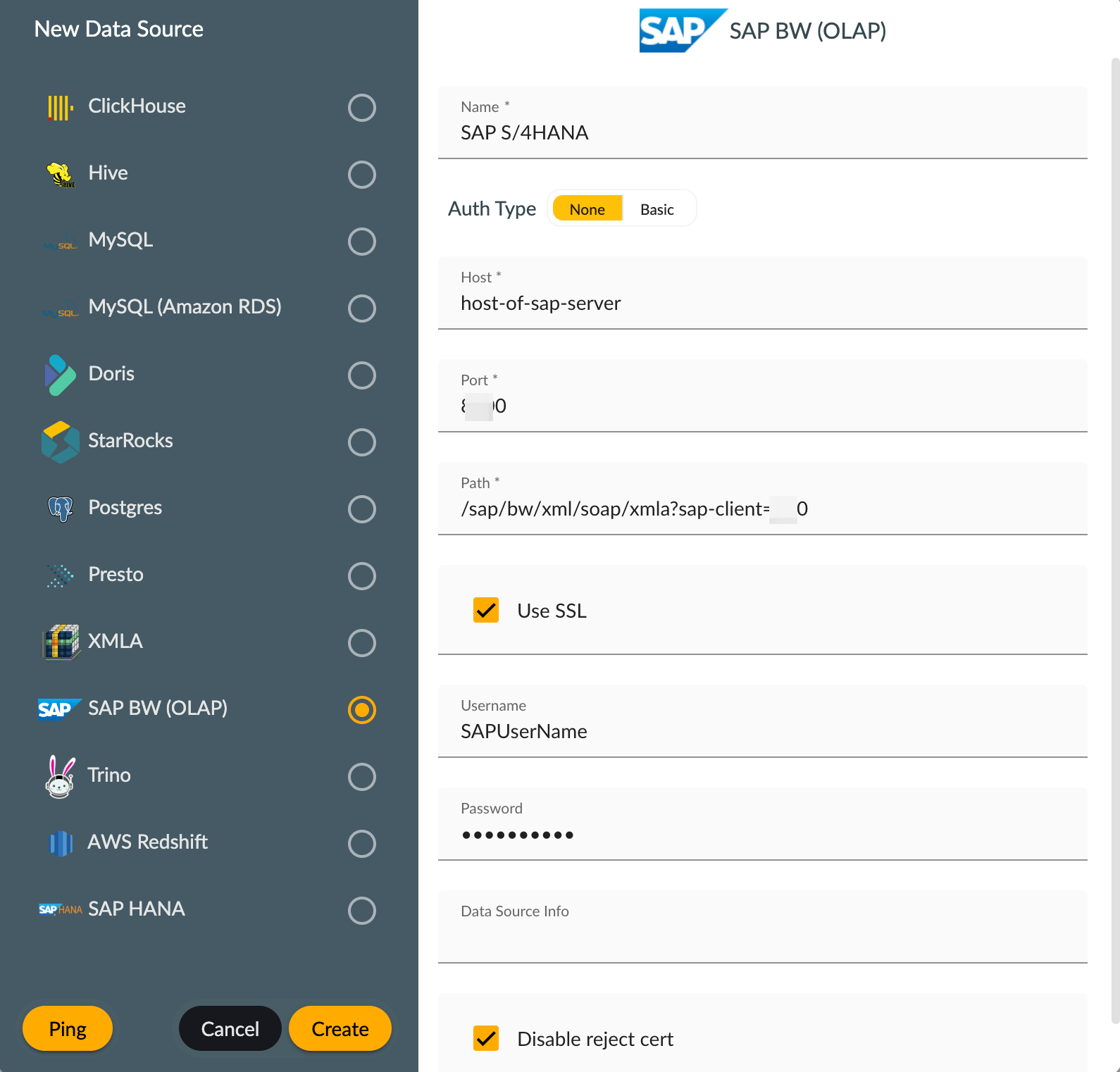

SAP S/4HANA Data Source
SAP S/4HANA Data Source Configuration

Semantic Model​

By connecting the data source of the S/4HANA system, create a semantic model for the cubes or individual queries in the SAP system, and interface it to ChatBI after semantic enhancement.

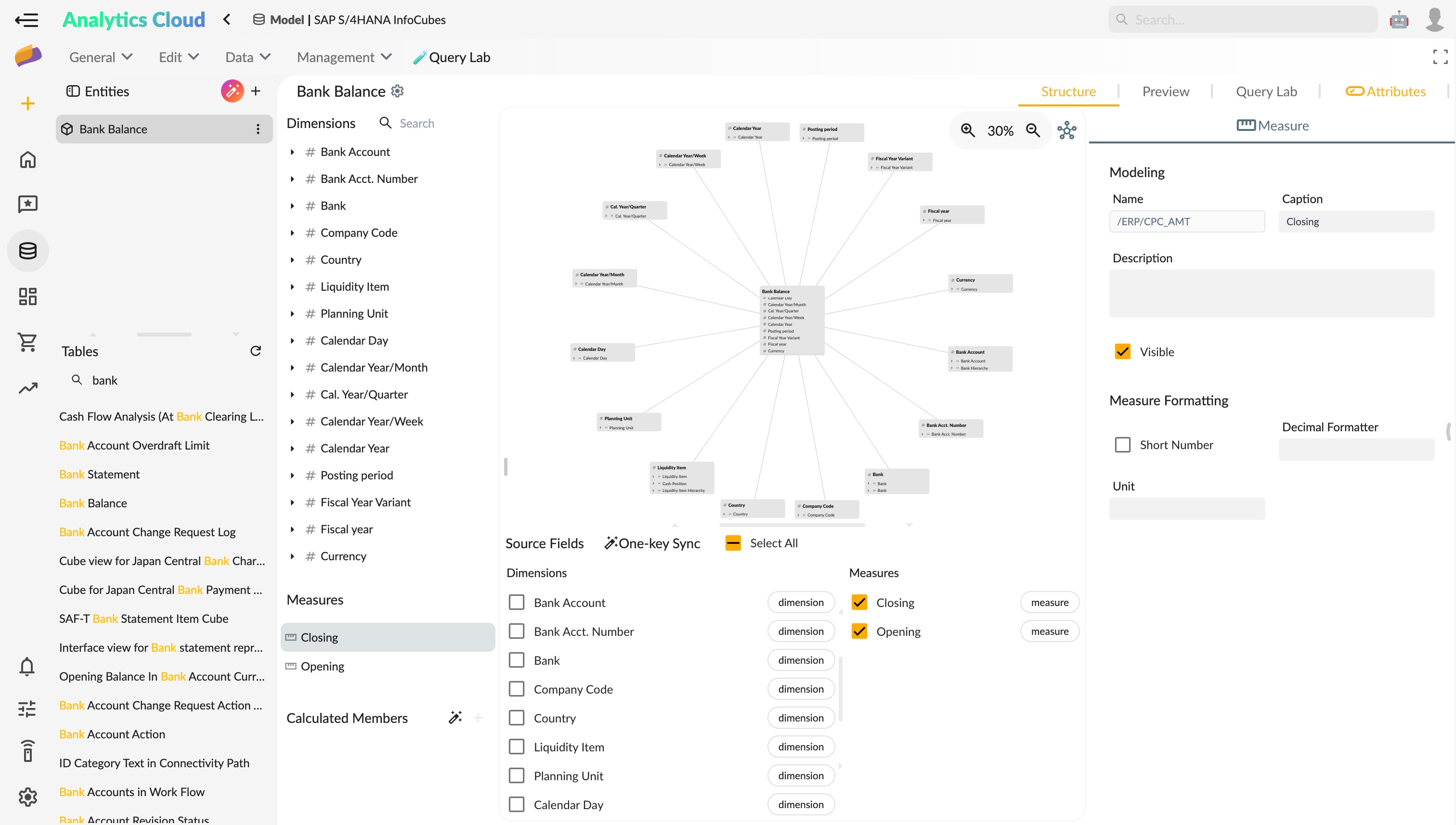

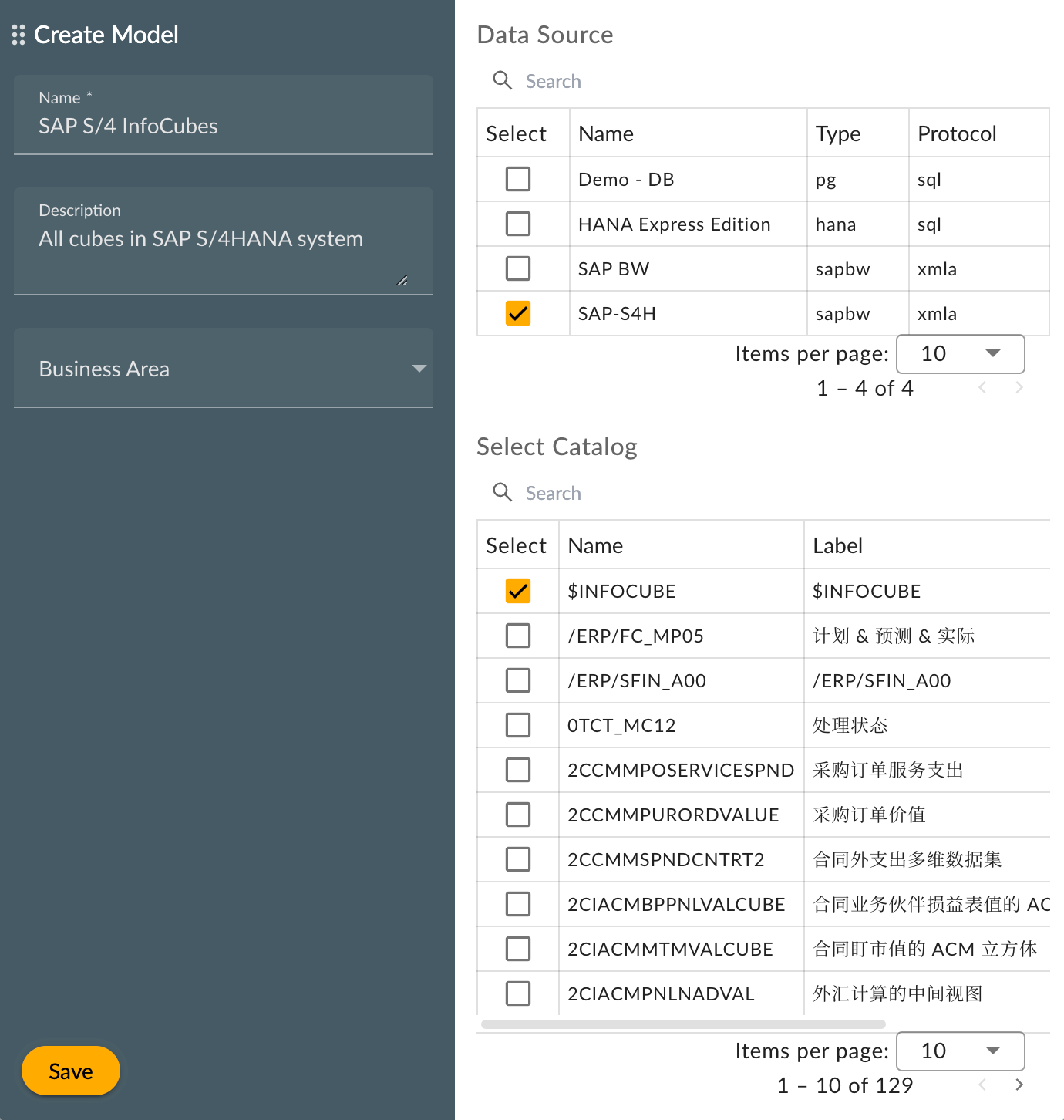

SAP S/4HANA Semantic Model
SAP S/4HANA Semantic Model
SAP S/4HANA Cube
SAP S/4HANA Cube

Configure Model for ChatBI Bot​

Configure the enhanced SAP Cube semantic model or the self-developed data warehouse semantic model into the ChatBI service so that the Feishu bot can view and analyze it.

Refer to Dialog Models.
