SAP BW

The system supports connecting to the SAP BW system through the standard XMLA protocol interface, and then enhancing the BW model and creating a story dashboard. This article describes how to connect to the SAP BW system.

Step 1. Get the XMLA service address of the SAP BW system​

To find the XMLA service address of the SAP BW system, you can run the function module RSBB_URL_PREFIX_GET through the program SE37 and enter the following parameters:

  • I_HANDLERCLASS = CL_RSR_MDX_SOAP_HANDLER
  • I_PROTOCOL = HTTP or HTTPS
  • I_MESSAGESERVER =

The output result fields will have:

  • E_URL_PREFIX = https://[domain]:[port]
  • E_URL_PATH = /sap/bw/xml/soap/xmla
  • E_URL_PROTOCOL = http or https
  • E_URL_SERVER = [domain]
  • E_URL_PORT = [port]
  • E_SUBRC = 0

Check service availability​

Access the address [https | http]://[domain]:[port]/sap/bw/xml/soap/xmla?sap-client=[sap-client] to see if the WSDL content of the XMLA service can be correctly returned. If you cannot access it, please check the following possibilities:

  • Check and enable the XMLA service of the SAP BW system: Open the SAP Client GUI to log in to the system, TCODE: SICF > default_host > sap > bw, right-click to activate the corresponding service node.
  • Check whether the information such as protocol, port and client number corresponds and is correct;
  • Ask the SAP system administrator whether your account has the corresponding permissions;

Step 2. Create a SAP BW data source​

  1. Go to the data source configuration page, click New
  2. Select SAP BW (OLAP) Type
  3. Enter the following information (corresponding to the information in step 1.):
PropertyValue
NameXXXX
Use local proxy✅ / ❎
Host[domain]
Port number[port]
Path/sap/bw/xml/soap/xmla
Use encrypted connection✅ / ❎
Disable certificate verification✅ / ❎
Username<Username>
Password<Password>

Click Create or Save.

SAP BW Data Source Configuration
SAP BW Data Source Configuration

Step 3. Test and use SAP BW data source​

If you have enabled the use of local agent, you need to refer to Local Agent to download and run the local agent service.

BW Objects​

After connecting to the SAP BW data source, the Create Semantic Model dialog box will display a list of available directories in the selected server.

You will see a directory folder named $INFOCUBE. This folder contains all InfoProviders in the SAP BW system.

Other directory folders represent InfoProviders for which at least one query exists in SAP BW.

SAP BW Catalog
SAP BW Catalog
Tip

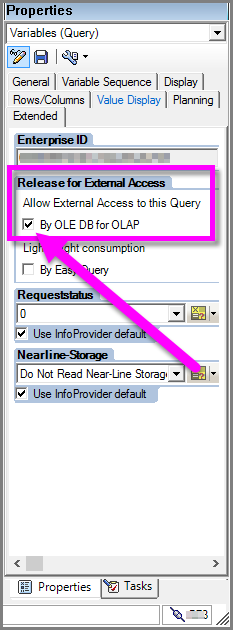

The Navigator displays InfoCubes and BEx queries. For BEx queries, you may need to go into Business Explorer, open the required query and check Allow external access to this query: via OLE DB for OLAP to get the query available in the Navigator.
