Client Tools

info

Learn how to define tools that let the agent operate client-side capabilities.

Client tools route model-initiated tool calls to the frontend UI for execution and return results back to the model to continue reasoning. Use them for reading frontend state, handling user interaction, or leveraging browser capabilities.

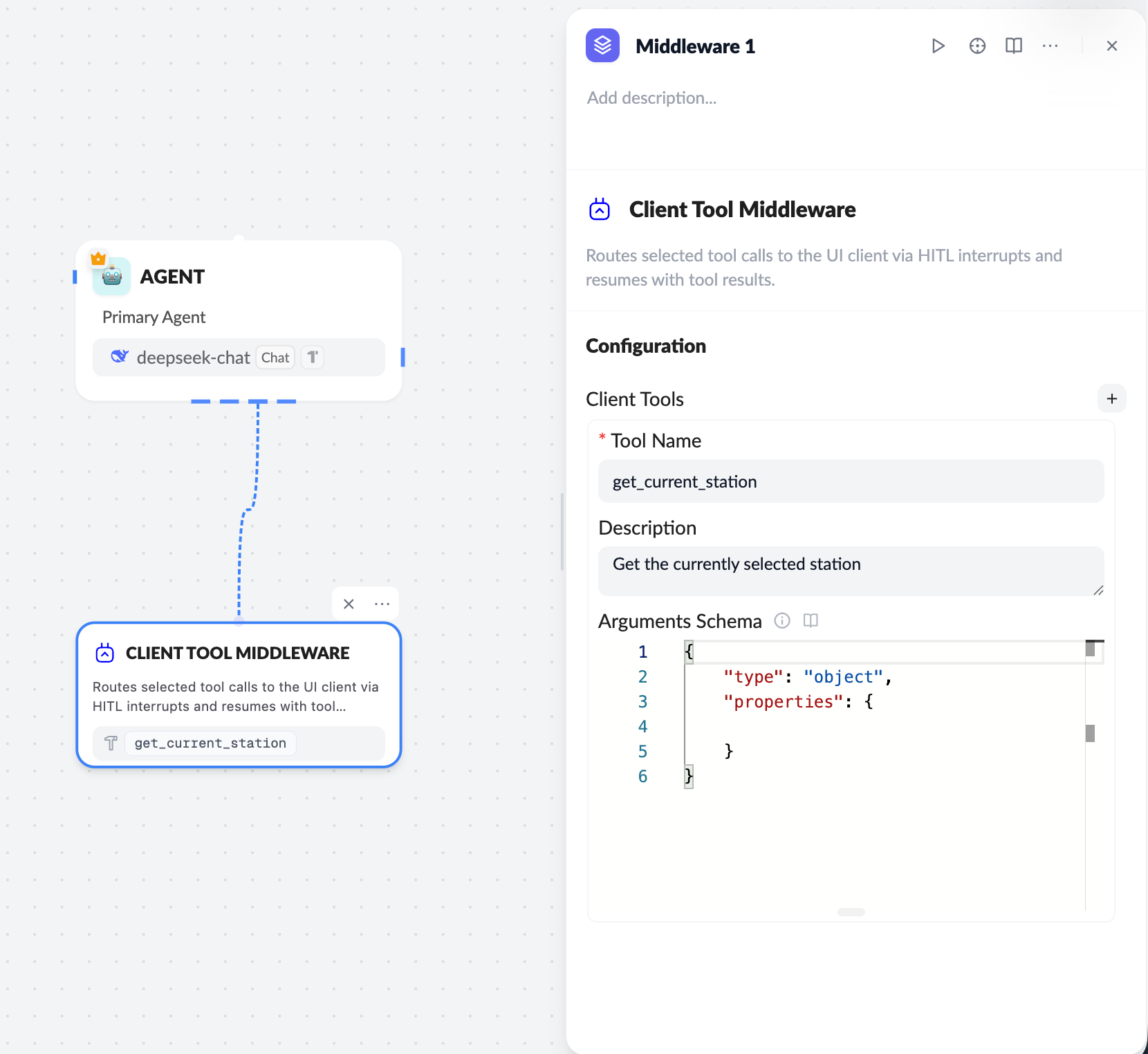

Client tool middleware
Client tool middleware

Workflowโ€‹

  1. Configure the Client Tool on the server
  • Use the Client Tool middleware in the workflow
  • Define Tool Name / Description / Arguments Schema
  1. Model triggers a tool call
  • The LLM calls the specified Client Tool based on context
  1. Frontend receives and executes
  • ChatKit sends the call to the frontend via onClientTool
  • The frontend runs the real logic (UI or local state)
  1. Return the result
  • The frontend returns the tool result
  • ChatKit passes the result back to the model to continue generation

Server configuration essentialsโ€‹

Tool Name

  • Unique identifier, for example get_current_station
  • Must exactly match the name in frontend code

Arguments Schema

The schema must follow the JSON Schema spec:

{
  "type": "object",
  "properties": {}
}

Frontend (React) integrationโ€‹

Register onClientTool in useChatKit:

const handleClientTool = async ({ name, tool_call_id, id }) => {
  if (name === 'get_current_station') {
    return {
      tool_call_id: tool_call_id || id,
      name,
      status: 'success',
      content: JSON.stringify({ /* tool result */ }),
    };
  }
};
useChatKit({
  ...
  onClientTool: handleClientTool,
});

Return payload formatโ€‹

  • tool_call_id: required
  • status: success or error
  • content: string (JSON recommended)
{
  "nodes": [...],
}

Best practicesโ€‹

  • Keep tool names identical between server and frontend
  • Use useRef to read the latest UI state and avoid stale closures
  • Keep content concise; avoid large payloads
  • For failures, return status: "error"

Client tools let ChatKit safely and controllably integrate with frontend state and user interactionsโ€”a key capability for HITL (Human-in-the-loop) and UI-aware agents.
